PROMISE VTrak x30 Series for Mac OS X
High Performance 8G Fibre Channel SAN Storage

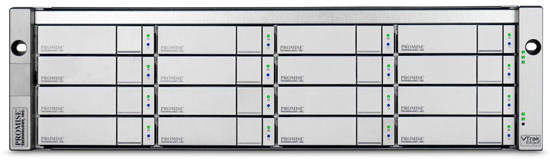

VTrak x30 Series 3U/16-bay

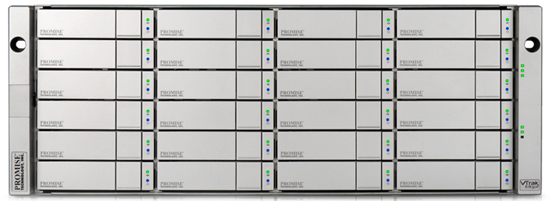

VTrak x30 Series 4U/24-bay
Included 3-year 24x7 support with next business day warranty
Our Price:
Included 3-year 24x7 support with next business day warranty
Our Price:
Included 3-year 24x7 support with next business day warranty
Our Price:
Included 3-year 24x7 support with next business day warranty
Our Price:
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:

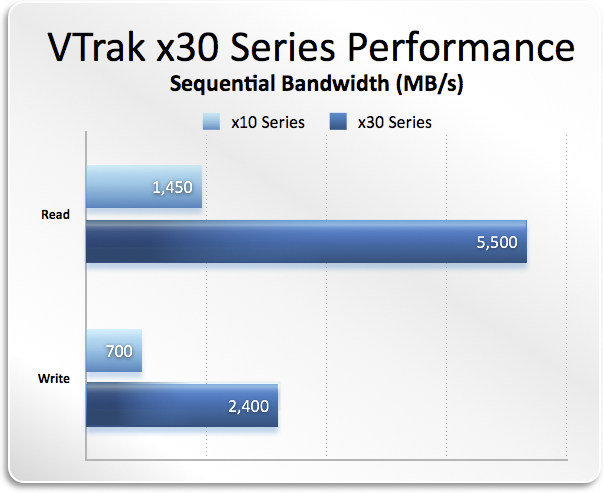

The PROMISE VTrak x30 Series RAID subsystem is a high performance, massively scalable 8G Fibre Channel storage subsystem designed to provide 24/7, 365 enterprise-class availability. Optimized to work within a Mac OS X environment, the VTrak x30 Series offers up to four times more performance than the previous generation delivering up to 5.5 GB/s for reads and 2.2 GB/s for writes.
The VTrak x30 Series RAID solution was developed to meet the mission critical needs of today's demanding video workflows. At the heart of the PROMISE VTrak x30 Series RAID subsystem is an advanced, high-performance RAID engine developed over the course of two decades. Powered by next-generation processing power from Intel, the Xeon C3500 Series processors, the VTrak x30 unleashes tomorrow's performance, today.
System Highlights and Benefits
- Quad 8Gbps FC ports per controller
- Delivers up four times more performance than previous generation
- High-availability design
- Out-of-the box support with zero software install required
- Embedded management and monitoring software compatible with a wide range of web browsers including Safari for Mac and iOS on iPad.

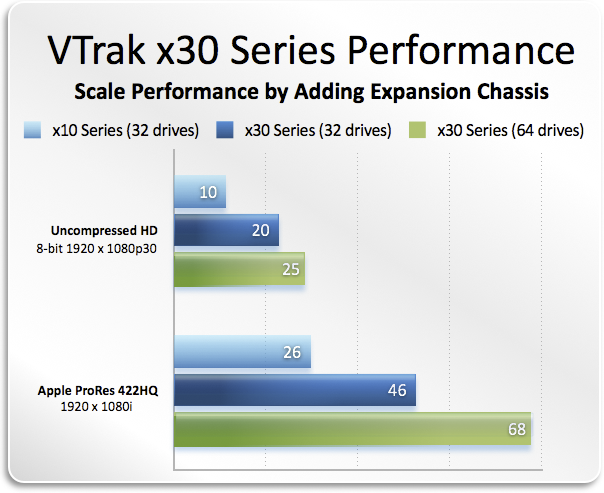

- Scale up to 7 Expansion Chassis for a total of 136 drives
- PerfectFlash enables software updates without requiring downtime
- Administer access control through Open Directory & LDAP
- Energy Efficient Power Supplies offering up to 85% power efficiency
- Qualified Solution for OS X, Xsan and Final Cut Pro
- Certified for Windows, Linux and StorNext
| VTrak x30 Series for Mac OS X | |
|---|---|
| VTrak x30 Series 16TB (8x 2TB SATA) 3U RAID Subsystem | |
| The PROMISE VTrak x30 Series subsystem, equipped with eight 2TB SATA drives(Up to 16 drive bays), has a single controller with four 8G FC ports with 4GB cache memory in a 3U form factor chassis. RAID 0, 1, 1E, 6, 5, 10, 50, 60
|
|
| VTrak x30 Series 32TB (16x 2TB SATA) 3U RAID Subsystem | |
| The PROMISE VTrak x30 Series subsystem, equipped with sixteen 2TB SATA drives (Up to 16 drive bays), comes with dual active/active controllers each with four 8G FC ports with 4GB cache memory in a 3U form factor chassis. RAID 0, 1, 1E, 6, 5, 10, 50, 60
|
|
| VTrak x30 Series 48TB (24x 2TB SATA) 4U RAID Subsystem | |
| The PROMISE VTrak x30 Series subsystem, equipped with twenty-four 2TB SATA drives (Up to 24 drive bays), comes with dual active/active controllers each with four 8G FC ports with 4GB cache memory in a 4U form factor chassis. RAID 0, 1, 1E, 6, 5, 10, 50, 60
|
|
| VTrak x30 Series 32TB (16x 2TB SATA) 3U Expansion Chassis | |
| The PROMISE VTrak x30 Series expansion chassis equipped with sixteen 2TB SATA drives (Up to 16 drive bays), comes with dual active/active I/O modules in a 3U form factor chassis. RAID 0, 1, 1E, 6, 5, 10, 50, 60
|
|
Features:
Your data is safe with VTrak.
Dual active-active 8Gbps Fibre Channel controller modules with cache mirroring over a high-speed PCIe Gen 2 link allow for redundant data paths to ensure data availability while dual power supplies units, battery backed cache and intelligent cache management strategies are in place to minimize downtime and protect user data. Hardened controller fail-over strategies, autonomous healing technologies like predictive data migration, along with robust RAID 5 and RAID 6 algorithms work in conjunction to improve the system fault tolerance capabilities and assist in keeping access to your data continuous.

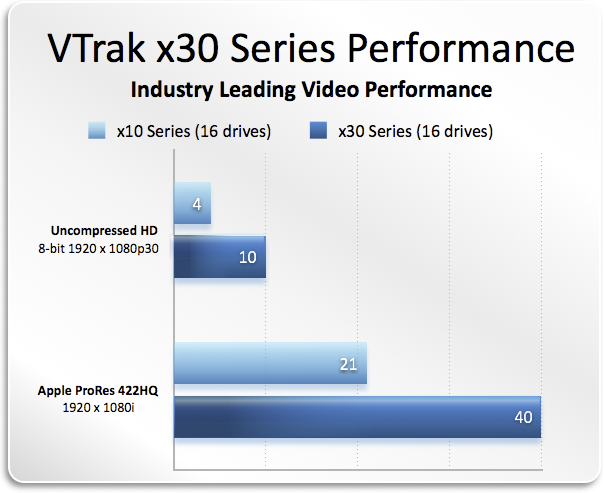

Edit & Playback Video Faster than Ever.
Faster processor, more memory, faster FC ports is just the beginning. Enhanced cached mirroring design, auto-regeneration of data to mitigate frame drops and optimized disk access all add up to more performance for broadcast and editing environments.

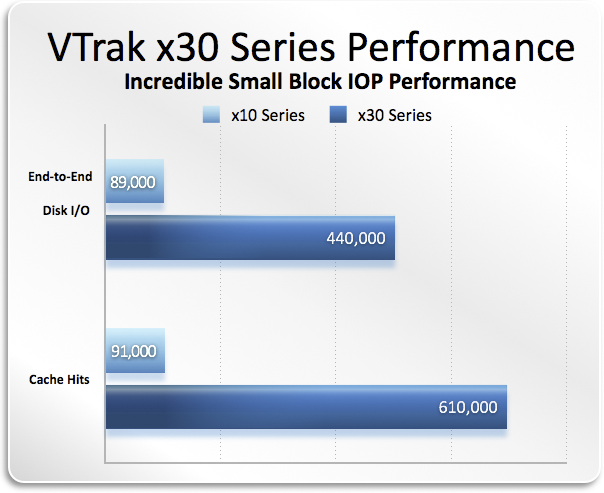

The VTrak x30 Series optimizes performance to enable creative media professionals to increase productivity by up to 2.5 times over the previous generation VTrak delivering the best in class performance for the media and entertainment industry.

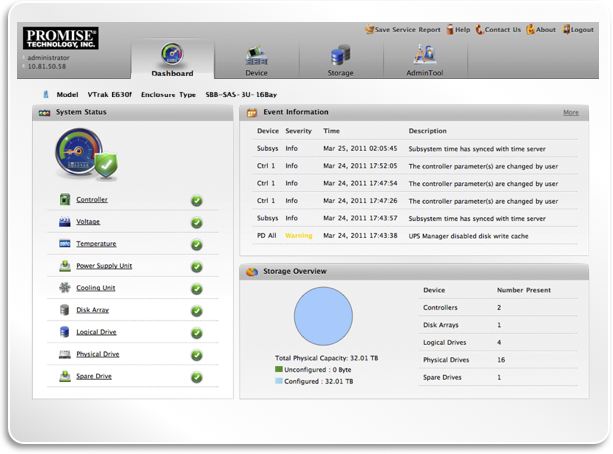

Redesigned WebPAM PROe Management Suite.
Designed with simplicity in mind, the all-new WebPAM PROe takes VTrak storage management to a new level. Included are automatic configurations tuned for common applications, non-disruptive software updates, power savings scheduler, performance and power monitoring statistics, drag-and-drop LUN mapping/masking and more. Everything you need is built in, just login through Safari on your Mac or iPad.
VTrak x30 Series enables enterprise-class management capabilities by supporting the latest in SNMP and CIM standards to work with popular enterprise monitoring software packages. In addition, for those users needing to propagate similar configurations over multiple RAID subsystems, WebPAM PROe has functionality to import configurations in under six clicks of the mouse.
Heterogeneous Environments. Always.
PROMISE has a long history of supporting multiple platforms. The VTrak x30 Series supports OS X, Windows and Linux. Extensively tested and qualified across diverse OS and SAN environments such as Xsan and StorNext, the VTrak x30 is built for your enterprise workload.
Specifications:
| VTrak x30 Series Configurations | ||||
|---|---|---|---|---|
| 16TB RAID Subsystem | 32TB RAID Subsystem | 48TB RAID Subsystem | 32TB Expansion Chassis | |
| Form Factor | 3U Rack Mount - 16 Drive Bays | 3U Rack Mount - 16 Drive Bays | 4U Rack Mount - 24 Drive Bays | 3U Rack Mount - 16 Drive Bays |
| Controller Number | Single | Dual | Dual | Dual |
| Controller Specification (per system) |
Four 8Gbps FC ports 4GB Cache |
Eight 8Gbps FC ports 8GB Cache |
Eight 8Gbps FC ports 8GB Cache |
Two x4 6Gbps SAS host ports Two x4 6Gbps SAS expansion ports |
| Drive Modules | Eight 2TB 7,200 RPM SATA | Sixteen 2TB 7,200 RPM SATA | Twenty-four 2TB 7,200 RPM SATA | Sixteen 2TB 7,200 RPM SATA |
| Expansion Support | Up to 7 Expansion Chassis | Up to 7 Expansion Chassis | Up to 7 Expansion Chassis | N/A |
| Service & Warranty | 3-year Next Business Day PROMISE ServicePlus | 3-year Next Business Day PROMISE ServicePlus | 3-year Next Business Day PROMISE ServicePlus | 3-year Next Business Day PROMISE ServicePlus |
| Controller Module Features | ||
| Drive Support |
|
|
| Controller Features |
|
|
| RAID Features | ||
| RAID Levels | 0, 1, 1E, 5, 6, 10, 50, 60 | |
| RAID Stripe Size Support | 64K, 128K, 256K, 512K and 1MB | |
| Hot Spares | Global or dedicated with revertible option | |
| Max LUNs per Subsystem | 1024 | |
| Max LUNs per array | 32 | |
| Capacity Expansion | Up to 7 PROMISE VTrak x30 Series JBOD Expansion Chassis for a total of 272TB (136 Drives) | |
| Background Activities |
|
|
| PerfectRAID Features |
|
|
| GreenRAID Features |
|
|
| Management & Monitoring | ||
| Management Features |
|
|
| Monitoring Features |
|
|
| Supported Operating Systems | Mac OS X / Mac OS X Server (10.5.2 or greater), Windows 2008, Windows 2008 R2, Oracle Linux, Red Hat Linux, SuSE Linux, VMware ESX 4.x | |
| Mechanical Specification | ||
| Voltage | 100-240 Vac Auto-Ranging | |
| Current (Maximum) | 10 A @ 100 Vac; 5 A @ 200 VAC | |
| Power Conversion Efficiency | >80% @ 110V (>20% load), >80% @ 240V (>20% load) | |
| Temperature Range | Operational: 5° to 35°C, Non-Operational: -40° to 60°C | |
| Humidity | Operational: 10% to 90% (Non-Condensing), Non-Operational: 5% to 95% (Non-Condensing) | |
| Acoustic Noise Levels | 55 dB (Typical), 65 dB (Maximum) | |
| Shock | Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration | |
| Vibration | Operational: 0.3G, 5 to 500 Hz, Non-Operational:: 1G, 5 to 500 Hz | |
| Safety | CE, FCC Class A, UL/cUL, TUV, BSMI Class A, VCCI Class A, CB, KCC, NOM, GOST-R, IRAM, C-Tick, S-Mark | |
| Environmental Standards | RoHS, GreenPC, WEEE | |
| 3U/16 Bay | 4U/24 Bay | |
| Power Supply | Dual 580W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design | Dual 750W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design |
| Dimensions (H x W x D) | 13.1 x 44.7 x 50.7 cm 5.2 x 17.6 x 19.96 in |
17.4 x 44.7 x 50.7 cm 6.9 x 17.6 x 19.96 in |
| Weight | 34.5 kg / 76 lbs (H4945LL/A) 44.5 kg / 98 lbs (H4946LL/A) 41.3 kg / 91 lbs (H4948LL/A) |
54.9 kg / 121 lbs (H4947LL/A) |
| Warranty and Support | ||
| Warranty | Three year limited warranty with next business day PROMISE ServicePlus (onsite parts replacement) where available; optional extended warranty; optional 4-hr response PROMISE ServicePlus upgrade | |
| Support | 24/7 e-mail and phone support (English only); 24/7 access to PROMISE support site-drivers, firmware and compatibility lists | |
Documentation:
Download the PROMISE VTrak x30 Series RAID Subsystem Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
VTrak x30 Series includes: Enclosure w/Drives, 2 Power cords for US, Quick Start Guide, Product CD, Rack Mount Kit.
