Pegasus5 R12
Compact, Large Capacity and High-Performance
Promise Pegasus5 R12 240TB (12 x 20TB SATA HDD) 3.5 inch RAID Drive System, with 1M Thunderbolt5 cable.
Our Price:
Promise Pegasus5 R12 288TB (12 x 24TB SATA HDD) 3.5 inch RAID Drive System, with 1M Thunderbolt5 cable.
Our Price:
Promise Pegasus5 R12 48TB (12 x 4TB SATA HDD) 3.5 inch RAID Drive System, with 1M Thunderbolt5 cable.
Our Price:
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Built for Creators. Designed to Scale.
Pegasus5 R12 is the next-generation storage platform for digital media creators. With Thunderbolt™ 5, a compact 12-bay design, and the proven PromiseRAID engine with Predictive Data Migration (PDM), it delivers smooth, reliable workflows in a whisper-quiet, compact solution.
For professionals demanding even more, the Pegasus5 R12 Pro adds a 12 & 4 hybrid design with HDD and NVMe SSD storage, up to 6,000 MB/s throughput, and advanced RAID flexibility — purpose-built for 8K editing, VFX rendering, and high-end production environments.
Features:
Thunderbolt™ 5 Performance
Harness the latest 80Gbps Thunderbolt™ 5 interface, enabling ultra-fast throughput for demanding creative applications.
- Up to 6,000 MB/s with Pegasus5 R12 Pro
- Up to 3,000 MB/s with Pegasus5 R12

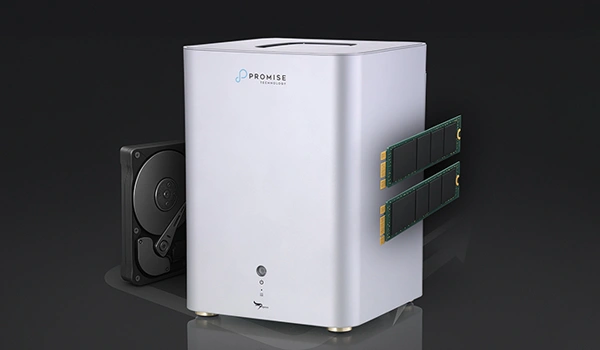

Hybrid HDD & NVMe Architecture (Pegasus5 R12 Pro only)
A true hybrid design with 12 × 3.5" SATA HDDs and 4 × M.2 NVMe SSDs, enabling tiered storage for both large capacity and lightning-fast SSD workflows. Flexible RAID options ensure data protection and performance tuning for SSD-based projects.
High-Capacity 12-Bay Design
Compact desktop enclosure supporting 12 × 3.5" SATA HDDs, scaling up to 288TB of raw storage, with whisper-quiet operation and hot-swap drive replacement for minimal downtime

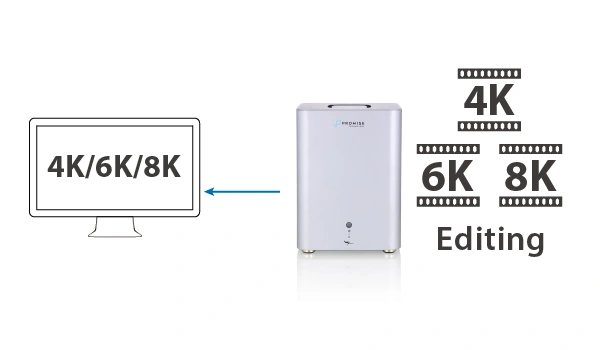

Optimized for High-Resolution Workflows
Built for modern production pipelines, Pegasus5 R12 supports multi-stream editing of 4K, 6K, and 8K content, ensuring smooth playback and uncompromised performance in professional environments

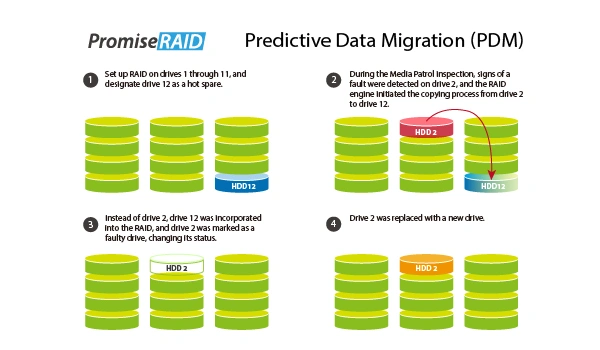

PromiseRAID with Predictive Data Migration (PDM)
Equipped with the PromiseRAID hardware engine for performance and reliability. Exclusive PDM technology continuously analyzes drive health, predicts issues, and automatically migrates data before failure occurs
Smart Power Management Architecture
Pegasus5 R12 series inherits the excellent power management features of PROMISE storage systems. If the host computer enters sleep mode, is shut down, or if the Thunderbolt™ connection is disconnected, the Pegasus5 R12 series enters reduced power state.
Benefits:
Why Choose Pegasus R12 Pro?
Double the Speed
– Up to 6,000 MB/s throughput
Hybrid Storage
– 12 HDD & 4 NVMe SSD for flexibility
Proven RAID
– Long battle harden, advance and flexible PromiseRAID.
Studio Ready
– Multi-8K and VFX optimized
Specifications and performance may vary by model. Some features are available on Pegasus5 R12 Pro only.
Thunderbolt™ 5 functionality is supported; official certification is currently in process.
Specifications:

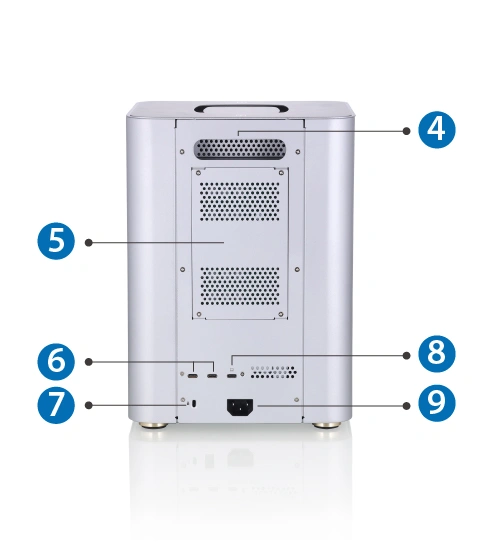

- Hard Drives Cover
- Power Button / Power and RAID Status Indicator
- Thunderbolt™ Link Indicator
- ifting Handle
- M.2 NVMe Cover (Pro Only)
- Two Thunderbolt™5 ports (Downstream)
- Kensington Lock
- One Thunderbolt™5 port (Upstream)
- Power Port
| Pegasus5 R12 | Pegasus5 R12 Pro | |
|---|---|---|
| General Information | ||
| Form Factor | 12-Bay Tower | 12 + 4-Bay Hybrid Tower |
| Drive Support | 12 x 3.5" SATA HDD | 12 x 3.5" SATA HDD + 4 x M.2 2280 NVMe SSD |
| MAX Capacity | HDD: 48TB (4TB x 12) up to 288TB (24TB x 12) | HDD: 48TB (4TB x12) up to 288TB (24TB x12) + 4 x NVMe SSD slots, each supporting 1TB up to 8TB |
| Interface type | Thunderbolt™ 5 80 Gbps or USB4 v1/v2 (with PCIe tunneling support) | |
| Thunderbolt™ Port | Thunderbolt™ 5 ports x 3 (one for host connection, two for downstream daisy chain) | |
| External Monitor | Downstream Thunderbolt™ 5 port can connect up to three 4K / dual 6K or single 8K monitor | |
| Power Delivery | 85W (Thunderbolt™ host and USB4 host) | |
| Port Type | USB Type C | |
| RAID & Features | ||
| RAID Flexibility | PromiseRAID 0/1/5/6/10/50/60 (HDD only) | HDD: PromiseRAID 0/1/5/6/10/50/60 NVMe: Windows OS: RAID 0/1/5; macOS: RAID 0/1 |
| Performance Use | Up to 3,000 MB/s | Up to 6,000 MB/s NVMe performance for mixed workloads. |
| Hot Spare* | Yes | |
| Max LUN | 128 | |
| Hot Swap* | Yes | |
| Software Highlights | ||
| Supported OS | Windows 11 / macOS 15 and above | |
| Management Tool | WebPAM 5.0, CLI | |
| Product Specific features | Intelligent Cooling, Drive SMART Health Polling | |
| Additional Features | PROMISE Plugin for Adobe® Premiere® Pro, Adobe® Photoshop® | |
| Physical Information | ||
| Dimension (H x W x D, mm) | 318 x 227 x 227 | |
| Weight | 16.0Kg | |
| Power Supply | AC 100-240V auto-ranging, 50-60Hz, 500W | |
| Environment | ||
| Temperature Range | Operating: 5° ~ 35° C , Non-operating: -40° ~ 60° C | |
| Humidity | Operating: 10% ~ 95% non-condensing , Storage: 5% ~ 95% non-condensing | |
| Standard | EMC: FCC, CE , Safety: cTUVus, CB | |
| Regulatory & Environmental Compliance | ErP/EuP, RoHS, WEEE | |
| Warranty and Support | ||
| Warranty | 3-year manufacturer’s commercial warranty. Statutory consumer rights apply independently and are not affected. | |
| Support | 24/7 PROMISE eSupport Portal (support.promise.com), optional 24/7 phone and email support available. | |
| Requirements | Workstation or laptop with Thunderbolt™ 5 port or USB 3.2 port | |
- Hot spare and hot swap are only available for 3.5" SATA hard drives.
- Specifications and performance may vary by model. Some features are available on Pegasus5 R12 Pro only.
- NVMe SSDs included with Pegasus5 R12 Pro are subject to the NVMe SSD Warranty Statement.
- Thunderbolt™ 5 functionality is supported; official certification is currently in process.
- Please note that product specifications may change without prior notice. In case of discrepancy, the English datasheet takes precedence.
Documentation:
Download the Pegasus5 R12 Pro (.PDF)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
Custom Configurations
Looking for more configuration options or custom setups? Our team can help you find the right solution based on your requirements.
Contact UsBulk Purchase Support
Need multiple devices for your business or project? Contact us to discuss bulk pricing, availability, and delivery options.
