Vess A8120
One Platform. Built for AI-Driven Surveillance
Our Price:
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Versatille
The Vess A8120 can perform one of three roles on the surveillance network: Management Server, Recording Server or IVA (Intelligent Video Analytics) Server. As a management server, the Vess A8120 can be independent management server which manages over 300 cameras/devices over surveillance network. As a recording server, the Vess A8120 can run users’ preferred recording software and have recorded video data stored within the Vess A8120 or PROMISE storage hardware for future playback.
Object Detection
Video Tracking
Features:

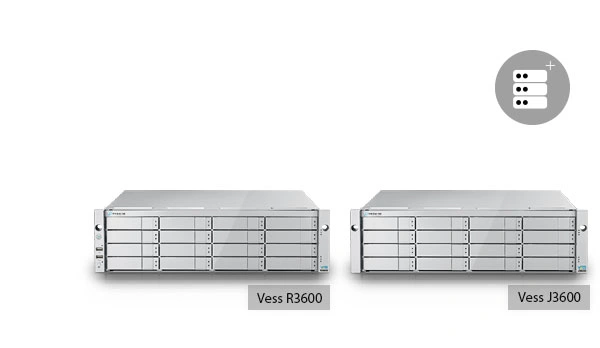

Scalable
Vess A8120 is a 1U 4-bay rack mounted hardware solution that enables storage capacity scalable to be easily scaled up using additional storage hardware. PROMISE Vess R3600 and Vess J3600 have been certified and tested with Vess A8120. Vess R3600 and up to 12 Vess J3600 JBODs could add capacity of up to 208 HDDs to a Vess A8120 deployment.
SMARTBOOST™ Technology Inside
PROMISE proprietary SMARTBOOST™ Technology creates the most stable and high-performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST™ Technology. With the optimized software features and Vess A Series has the best stability and storage performance with the best C/P ratio.
Predictive Playback
Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.
Remote Active Service
Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.
Sequential Pattern Recording
Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.

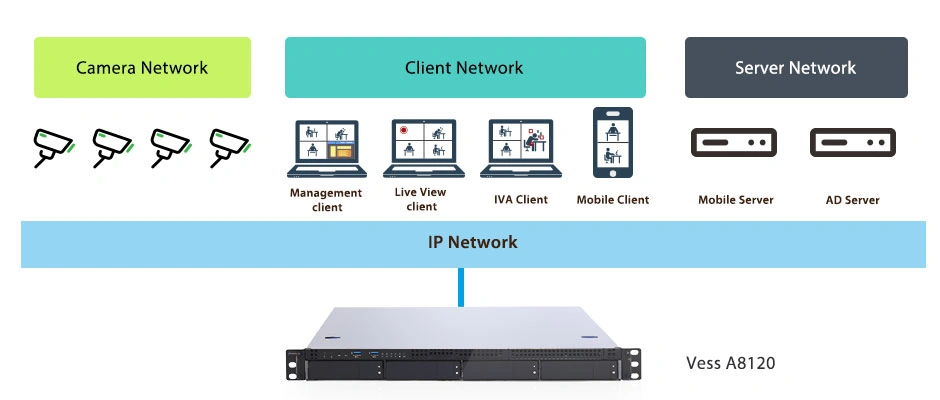

Built for Surveillance
Vess A8120 is the successor of the best selling Vess A6120 Series, recognized in the industry for operating reliability and performance in surveillance projects worldwide. For most of those years, PROMISE has worked closely with major VMS vendors to incorporate storage management features into their software.

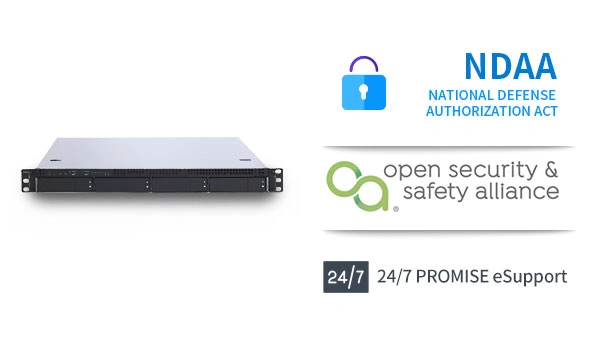

Security
Vess A8120 undergoes vigorous security testing, including strict adherence to Secure SDCL, Open Source Security, and NDAA compliance. And if you have any storage related problems the PROMISE tech support team and sales staff is available 24/7 to help workout the issue.
Specifications:
| Model | Vess A8120 |
| Form Factor | 1U 19" Rackmount |
| Number of Bays | 4 (front) |
| Drive Support | 4 x 3.5" (hot-swap) + 2 x 2.5" (internal fixed)** |
| OS SSD (M.2 or 2.5”) | Optional for OS-boot RAID or non-RAID |
| HDD Type | Enterprise SATA HDD or SATA SSD (Option SAS HDD***) |
| Processor | Intel Xeon® Gen II Scalable Silver, Optional for Dual CPU |
| Memory | 16G default; Max.256G (Single CPU) or 512G (Dual CPU) |
| External Storage Option | iSCSI & NAS |
| Throughtput | 1000Mbps |
| Interface | |
| NIC Port | 1GbE Lan Ports x 4 10 / 100 / 1000 Management Port x 1 (Optional 10Gbe Ports) |
| USB Port | USB 3.0 Ports (Front panel) x2 USB 3.0 Ports (I/O panel) x 2 |
| PCI Express Port | PCIe Gen3-16x2 (1 from CPU0, 1 from CPU1) |
| Graphic Port | D-Sub (VGA onboard) x 1 |
| Serial Port | N/A |
| RAID Operation | |
| RAID Level | PROMISE RAID 0,1,5,6,10 |
| Hot Spare | Support |
| Software Highlights | |
| Supported OS | Microsoft® Windows Server 2019, Windows Server 2022 |
| SMARTBOOST™ Technologies | SMARTBOOST™ Storage |
| Management Tool | BMC Controller AST2500 IPMI Supported / Dedicated GLAN |
| Physical Information | |
| Dimension (H x W x D, mm) | 43.4mm x 430.0mm x 625.0mm |
| Weight | 20.5kg w/o drives / 24.5kg w/drives |
| AC Input | 100-127Vac, 200-240Vac, 180-300Vdc |
| Current (Maximum) | 8.8A@100-127Vac @full load / 4.3A@200-240Vac @full load / 5A@180-300Vdc @full load |
| Power Supply | Redundant 750W for each power |
| Hot Swap | HDD Module / PSU Module |
| Environment | |
| Temperature Range | Operation Temperature: 5˚C-40˚C |
| Green Certificate | Efficiency 80-PLUS Platinum |
| Warranty and Support | |
| Warranty | 3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available. |
| Support | 24/7 PROMISE eSupport Portal (support.promise.com), optional 24/7 phone and email support available. |
Documentation:
Download the Vess A8120 (.PDF)
