Overview:
The P3WB Series with Thunderbolt 3 technology delivers blistering performance for creative professionals creating high resolution video and rich media content. It is built to maximize the available line rate of Thunderbolt 3, video creators, photographers, graphic artists, and engineers alike can transfer and display 4K video files simultaneously at lightning speeds.
The P3WB is the world’s first RAID 5 solution featuring Thunderbolt 3 technology, enabling pros and enthusiasts to create, edit, and view live 4K video streams while simultaneously backing up files to the system. Storage capacity for massive 4K projects can be expanded by daisy-chaining multiple P3WB systems.

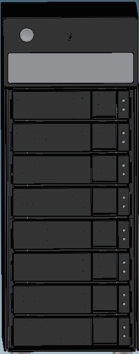

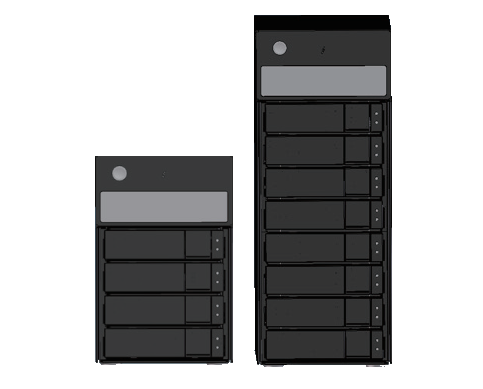

Available in both 4-bay and 8-bay configurations, the P3WB is able to provide unparalleled customization and expandability.
Highlights
• Create, edit, view, and share brilliant 3D and 4K video
• Seamlessly transfer terabytes of data in minutes rather than hours
• Supports maximum throughput allowed by Thunderbolt™ 3 interface
• Expand storage capacity and backup for workstations
• Hot-swappable drive bays for effortless drive access and serviceability
• Portable hardware RAID protection for offsite shoots
• Safely backup massive creative projects
• Simplify and accelerate your workflow
• Supports simultaneous streaming, editing, and backup of 4K video
• Dual Thunderbolt™ ports for daisy-chaining
• Massive capacity for backing up creative projects & digital libraries
• Essential to P3WB end-to-end 4K workflow environment
Specifications:
| P3WBX4 White Box (Diskless) | P3WBX8 White Box (Diskless) | |
|---|---|---|
|
|
|
| General Information | ||
| Form Factor | 4-Bay hardware RAID enclosure | 8-Bay hardware RAID enclosure |
| Drive Support | 3.5" SATA 6Gb/s (user needs to buy the extra 2.5" to 3.5" HDD bracket for the AVL 2.5" HDD/SSD) | 3.5" SATA 6Gb/s (user needs to buy the extra 2.5" to 3.5" HDD bracket for the AVL 2.5" HDD/SSD) |
| Processor | Integrated SAS ROC (Raid-On-Chip) | Integrated SAS ROC (Raid-On-Chip) |
| Memory | 1GB DDR3 1866 ECC on board | 1GB DDR3 1866 ECC on board |
| Controller (TBT chip) | Intel Titan Ridge | Intel Titan Ridge |
| Expansion | 2 Thunderbolt ports use for daisy chain | 2x Thunderbolt ports use for daisy chain |
| Camera Range (optional) | N/A | N/A |
| Host Interface* | 2x USB-C ports either Thunderbolt3 40Gbps (power the host up to 85W - Port A only) or USB 3.2 Gen 2 | 2x USB-C ports either Thunderbolt3 40Gbps (power the host up to 85W - Port A only) or USB 3.2 Gen 2 |
| Thunderbolt Port | Dual Thunderbolt ports, one for host connection, one for downstream daisy chain | Dual Thunderbolt ports, one for host connection, one for downstream daisy chain |
| Port type | USB Type C | USB Type C |
| PCI Express Port | NA | NA |
| Graphic Port | NA | NA |
| Microphone | NA | NA |
| RAID & Features | ||
| RAID Level | RAID 0, 1, 5, 6, 10, JBOD | RAID 0, 1, 5, 6, 10, 50, 60, JBOD |
| Hot Spare | Yes | Yes |
| Max LUNs | 128 | 128 |
| Hot Swap | Yes | Yes |
| Software Highlights | ||
| Supported OS | macOS/Windows, Driver and Management Tool. Linux (driver only) | macOS/Windows, Driver and Management Tool. Linux (driver only) |
| Management Tool | P3WB Utility | P3WB Utility |
| Product Specific Features | Intelligent Cooling/Acoustic control, Drive SMART health Polling | Intelligent Cooling/Acoustic control, Drive SMART health Polling |
| Ecosystem Integration | NA | NA |
| Product Specific Features | Intelligent Cooling/Acoustic control, Drive SMART health Polling | Intelligent Cooling/Acoustic control, Drive SMART health Polling |
| NAS Features | NA | NA |
| Physical Information | ||
| Dimension | 191 x 123 x 277 (H x W x D, mm) | 309 x 123 x 277 (H x W x D, mm) |
| Weight | 4.2kg | 5.9kg |
| AC Input | 100-240V auto-ranging, 50~60Hz AC | 100-240V auto-ranging, 50~60Hz AC |
| Power Supply | 250W PSU | 250W PSU |
| Environment | ||
| Temperature Range | Operating: 5° ~ 35° C , Non-operating: -40° ~ 70° C | Operating: 5° ~ 35° C , Non-operating: -40° ~ 70° C |
| Humidity | Operating: 10% ~ 95% non-condensing , Storage: 5% - 95% non-condensing | Operating: 10% ~ 95% non-condensing , Storage: 5% - 95% non-condensing |
| Regulatory/Safety | NA (EMC: FCC, CE , Safety: cTUVus, CB by the customer request) | NA (EMC: FCC, CE , Safety: cTUVus, CB by the customer request) |
| Green Certificate | ROHS, WEEE | ROHS, WEEE |
| Warranty & Support | ||
| Warranty | 3-years standard warranty | 3-years standard warranty |
| Support | NA | NA |
| Packing Material | ||
| Thunderbolt3 / USB cable (USB Type-C) | 1x 0.7 Thunderbolt3 / USB cable (USB Type-C) | 1x 0.7 Thunderbolt3 / USB cable (USB Type-C) |
| AC Power Cord | 1x 1.8m US power cord | 1x 1.8m US power cord |
Documentation:
Download the PROMISE P3WB Series Datasheet (PDF).
