Vess A8600
One Platform. Built for AI-Driven Surveillance
Our Price:
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Performance and Capacity
The Vess A8600 and A8800 combines performance and scalable on premise storage capacity ideal for video surveillance and data-intensive workloads of large enterprises. Vess A8600 and A8800 are specially engineered for video recording and Intelligent Video Analytics (IVA) applications. Hardware options include PCI slots suitable for an additional Intel Xeon CPU (dual CPU option); or a GPU card can be used for video analytics or other processor intensive applications.
PROMISE proprietary SMARTBOOST™ and PromiseRAID technology ensures robust, high-performance storage for video recording without frame drop; it has proven itself in the industry in thousands of large-scale deployments worldwide.
Storage capacity of 320TB for the Vess A8600 and 480TB for the Vess A8800 plus huge scale up potential (320TB / 480TB) provides flexibility for future growth. Capacity can be seamlessly added to an existing setup as needed using Vess R3000/J3000 external storage hardware connected via iSCSI interface.
Intelligent Video Analytics
Intel Xeon Scalable CPU
Expansion-Ready
Features:
Simplified Management and Reduced Complexity
Vess A8600 and A8800 simplifies management of the surveillance network for daily operation. Integration of recorder and storage servers provides a total video surveillance solution combining VMS software and external storage. The legacy of the Vess A-Series is fully expressed in the Vess A8600 and A8800 with features integrated into the most popular VMS vendors. The systems are easy to setup, manage and maintain, greatly reducing the burden upon already overloaded IT staff. Once in place, little active management is needed and for many VMS platforms, storage system status is monitored directly the VMS user interface using a special plug-in designed for the particular VMS. Management software supports SNMPv2 as well as SNMP v3 for additional security.
Modular hardware design enables quick replacement in the field for components such as hard drives and power supplies plus One Plug Auto Service (OPAS) for fast diagnosis of any problems by PROMISE tech support staff available 24/7 online or via phone.

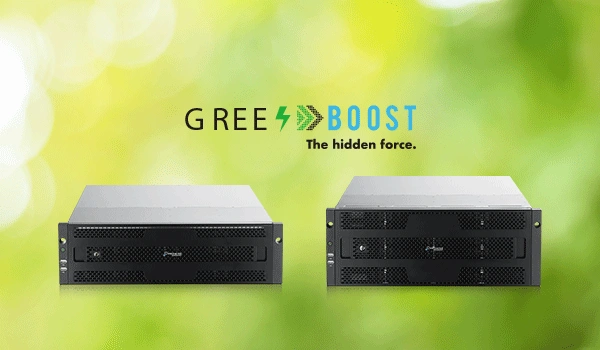

Reduced Power Consumption and Green Technology
PROMISE is committed to creating products that are power efficient and reduce harmful waste in the manufacturing. The new Vess A8600/A8800 continues in this effort with hot-swappable power supply modules and green design concepts (GreenBoost™ technology) incorporated into the hardware engineering to reduce power consumption, noise and thermal output.
Specifications:
| Model | Vess A8600 | Vess A8800 |
| General Information | ||
| Camera Range¹ | 170 | 200 |
| Form Factor | 3U, 19" Rackmount | 4U, 19" Rackmount |
| Number of Drives | 16 Drives | 24 Drives |
| Drive Type | Hot Swappable 3.5" Enterprise SATA HDD 6Gbs. Optional 2.5" Enterprise SATA SSD | |
| Internal Storage | M.2 PCIe NVMe SSD 256GB (Standard) or M.2 256GBx2 OS RAID (Optional) | |
| System Processor | Intel Xeon® Scalable Silver 4208 or Silver 4210R (Dual CPU optional) | |
| System Memory | 2 x 16GB DDR4 Default (Max 768GB) | |
| Storage Expansion | Optional PROMISE Vess R and Vess J series via iSCSI | |
| Interface | ||
| NIC Port | 4 x Gigabit Ethernet (Optional accessory: Dual port 10Gbps SFP+ NIC) | |
| IPMI Port | 1 x Dedicated IPMI Gigabit Ethernet | |
| USB Port | 2 x USB 3.0 | |
| PCI Express Port | 4 x PCIe3.0 x16 1 x PCIe3.0 x8 (available only when OS RAID card is not present) |
|
| Graphic Interface | 1x D-sub VGA | |
| Audio I/O | 3 x 3.5mm Audio Jack | |
| Graphic Card Support | Supports NVIDIA Pascal, Turing, Ampere, Ada Lovelace and Hopper Arch. GPUs 4 x 350mm (L) * 111mm(H) * single slot 2 x 350mm (L) * 111mm(H) * dual slots |
Supports NVIDIA Pascal, Turing, Ampere, Ada Lovelace and Hopper Arch. GPUs 4 x 350mm (L) * 155mm(H) * single slot 2 x 350mm (L) * 155mm(H) * dual slots |
| RAID Operational Feature | ||
| RAID Level | 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60 (Any combination can be configured simultaneously) | |
| Hot Spares | Multiple global or dedicated hot-spare drives with revertible option | |
| Software | ||
| OS Supported (64-bit) | Windows 10, Windows 11, Windows Server 2019, Windows Server 2022, Ubuntu | |
| Management Tools | Graphical UI/SNMP via Ethernet, CLI via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration | |
| Optimization Technologies | SMARTBOOST™ Storage for Video Surveillance optimization | |
| Event Notification | Email, SNMP (V1/V2/V3), Buzzer, LEDs | |
| System Information | ||
| AC Input | 100 ~ 240 VAC, 60 ~ 50Hz | |
| Current (Maximum) | <15A @ 100-127Vac @full load / <10A @ 200-240Vac/160-340Vdc @full load | |
| Power Supply | Hot Swappable 80 PLUS Platinum 1200W Redundant Power Supply (80 PLUS Titanium 1300W available for Europe) | |
| Temperature | 5° ~ 40°C (-40° ~ 60°C non-operational) | |
| Dimensions (H x W x D) | 131 x 482 x 665 mm / 5.16" x 18.98" x 26.18" | 175 x 482 x 665 mm / 6.89" x 18.98" x 26.18" |
| Weight | W/o HDD ~21.50kg (~ 47.40 lbs) W/ HDD: ~33.50kg (~ 73.75 lbs) |
W/o HDD ~25.50kg (~ 55.25 lbs) W/ HDD: ~43.00kg (~ 94.75 lbs) |
| Warranty and Support | ||
| Warranty | 3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available. | |
| Support | 24/7 PROMISE eSupport Portal (support.promise.com), optional 24/7 phone and email support available. | |
Documentation:
Download the Vess A8600 (.PDF)
